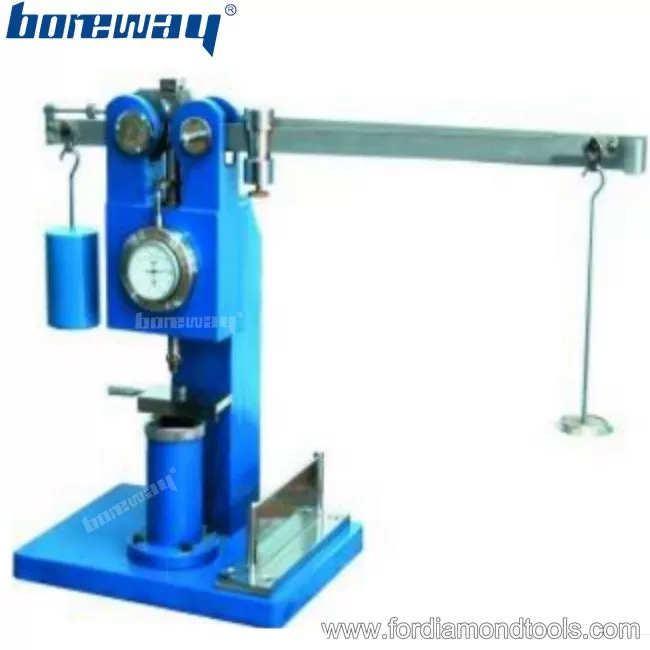

Compression Strength Tester For Single Grain Diamond BWM_DKY_1

Product Specification:

Model :

BWM-DKY-1
Error :

±1%
Ratio of Level :

1
The sliding weight :

0-30N
Measuring Range :

0-500N
Workbench lift adjustment range :

8mm
Overall Dimension :

645mm×240mm×500mm

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

BWM-DKY-1 type compression strength tester for single grain diamond is used for testing compression strength of natural or synthetic diamond. It features nice measurement and stable capacity. It is totally accord to the requirement of JB/T7988.1-1999 Super-hard Abrasives compression strength testing method and JJG(machine) 7-90 Procedure for Testing Single Grain Compression.

High-strength static analyzer and the compressive strength of ordinary abrasive single particle detector can be customized.

Diamond clad sheet indenter can be equipped for special needs with additional charges.

Compression strength tester for single grain diamond BWM-DKY-1

Denomination
Measuring Range:0-500N(the sliding weight		0-500N(the sliding weight:0-30N)
Error		±1%
Workbench lift adjustment range:		8mm
Ratio of Level		1:15
Overall Dimension (L×W×H)：		645mm×240mm×500mm
Diamond clad sheet indenter can be equipped for special needs with additional charges

Other specifications can be customized according to buyer's requirements.

Compression strength tester for single grain diamond BWM-DKY-1

Compression strength tester for single grain diamond

Compression strength tester machine packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
