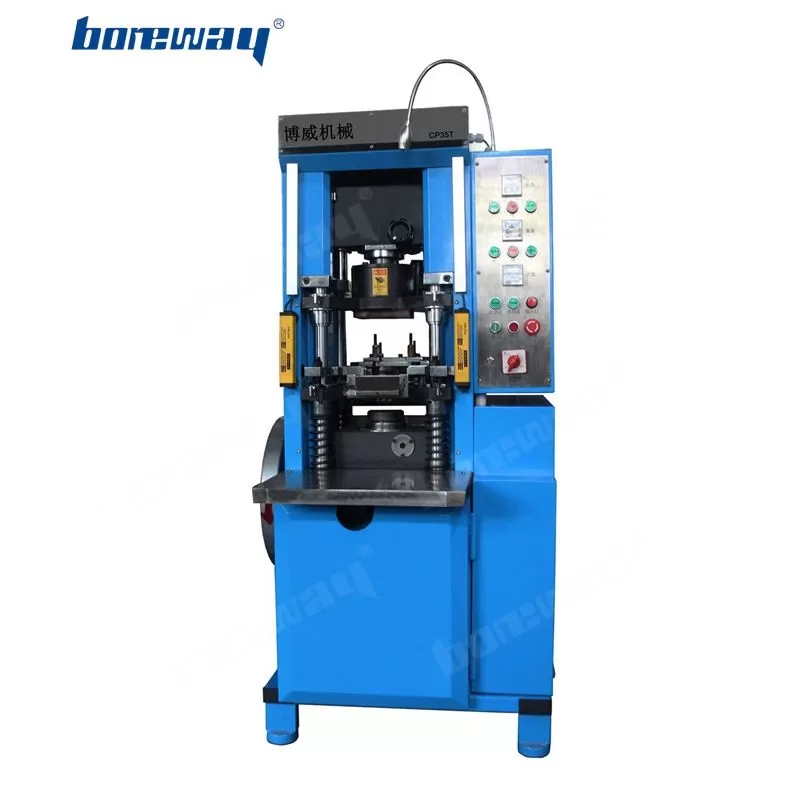

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

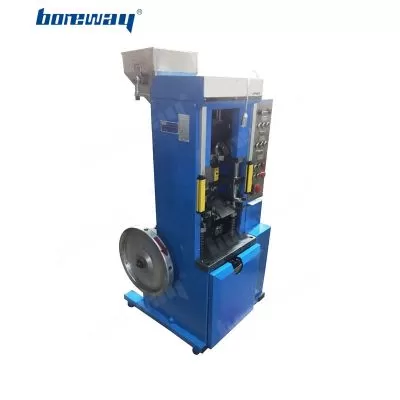

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

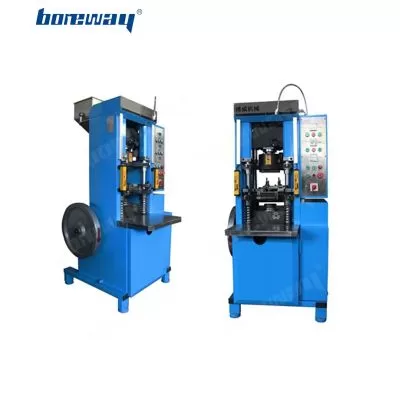

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

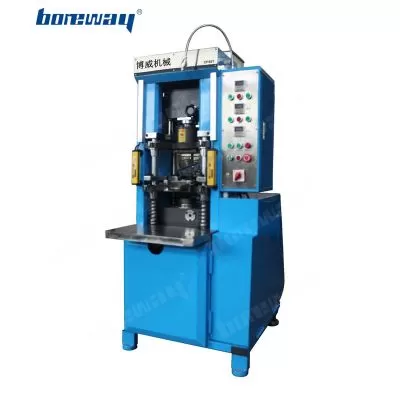

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency
BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Product Specification:
  • Model :
    BWM-35T
  • Motor Power :
    2.2KW
  • The rated current :
    6A
  • The rated voltage :
    380V
  • Distance of upward :
    64MM
  • Work efficiency :
    34Times / Min
  • Maximum working pressure :
    35000KGS
See Price
  1. Product Details


Automatic Diamond Segment Cold Press Machine is divided into two different models according to the different pressure (BWM-MP35T and BWM-MP60T). On the basis of the commonly used mechanical cold press machines, We have made many improvements and adjustments.

Automatic Diamond Segment Cold Press Machine be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc.

Features:
1. Small and delicate LED work light;
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. It also can be used for pressing the segment with a base layer of metal powder (welding layer).
4. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;
7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:
Our Automatic Diamond Segment Cold Press Machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland,
Russia, more than 20 different countries . In these overseas markets, our  products enjoy a good reputation,  we get good feedbacks about their corresponding test result, and also a long lifespan.
So, we are confident in our products quality. welcome to contact with us, if you have demands on our machine.
All of our products have been strictly tested before access to market.

Automatic Diamond Segment Cold Press Machine:
Model: BWM-MP35T
 Maximum working pressure 35000KGS
 Maximum size of mould cavity 40*70MM
 Size of the mould L (220-250) * W 130 * H (20-30)CM
 The largest volume of hopper box 30KGS
 Maximum height of metal powder 0.5-20MM
 Weight accuracy of metal piece ±2%
 Quantity of metal piece per time 1- 4PC
 Motor Power 2.2KW
 The rated voltage 380V
 The rated current 6A
 Work efficiency 34Times / Min
 Size of the mould L (220-250) * W 130 * H (20-30)CM
 Device dimension L810 * W1000 * H1600(Face angle)
 Net Weight 760KGS

Other specifications can be customized according to buyer's requirements.


BWM-MP35T Automatic Diamond Segment Cold Press Machine:

Automatic Diamond Segment Cold Press Machine

BWM-MP35T Automatic Diamond Segment Cold Press Machine:

The Details:

Automatic Diamond Segment Cold Press Machine01Automatic Diamond Segment Cold Press Machine02

Automatic Diamond Segment Cold Press Machine03Automatic Diamond Segment Cold Press Machine04

Automatic Diamond Segment Cold Press Machine05Automatic Diamond Segment Cold Press Machine06

Diamond Segment Cold Press Machine Accessories and Tool Box included as below:

Abrasive Diamond Powder‎ cold press machine accessoriesAbrasive Diamond Powder‎ cold press machine tool box

This cold press machine can make the following diamond segments,also can make other kinds.
More Pics in details, Please contact with us :)
diamond segments cold press machine
We will delivery the cold press machine within seven days after your full payment.
Diamond Segment Cold Press Machine packed in standard export wooden case.
We can also pack the cold press machine according to your requirements.
Special specifications need to be negotiated before the delivery date.
Packing:
Automatic Mechanical Cold Press Machine
Shipping:
Automatic Diamond Segment Cold Press Machine

How to make a diamond segment?
1.Mix the powders
2. Cold pressed
3. Fill it in mould
4. Sintered
5.Mould removal
6. Deburring and Inspection

If you need to make diamond segments yourself, you need the following equipments:
1.Cold press machine
2. Sintering machine
3. Mixing machine(the mixer)
4. Graphite Mould + Graphite Mould Frame for Sintering segment
    Diamond and other metal powders for segments
    Cold pressing mould
We have all the above mentioned equipments
Welcome to Contact with us if you want to know more details of this cold press machine.
