Cylineder_above Hydraulic Oil Press Machine For Making Resin Products MY Series
Cylineder_above Hydraulic Oil Press Machine For Making Resin Products MY Series

Cylineder_above Hydraulic Oil Press Machine For Making Resin Products MY Series

Product Specification:
  • Model :
    BWM-MY Series
  • Motor power(kw) :
    2.2-11
  • Worktable size(mm) :
    730×660
  • Rated oil pressure(MPa) :
    25-29
  • Nominal pressure(KN) :
    1000-5000
  • Speed of idle stroke(mm/s) :
    12-25
  • Diameter of the piston(mm) :
    Φ220-Φ480
See Price
  1. Product Details
Boreway High Quality Cylineder-above hydraulic oil press machine for making resin polishing products
This oil press machine is suitable for making small diameter conventional grinding wheel and super abrasive tools.
Fast pressing, high efficiency, good technical performance, reliable work, low power consumption and low cost. adding heating-up board and temperature controller it can be a hot press.

Features:
1. The cylinder and plunger are with sealing.
2. There is an oil injection hole on the column.
3. The oil box laid forth while mainframe is back.
4. It sdopts tube to connect the oil box and mainframe.
5. The upper insulating board is thicker than the lower one.
6. There is heating insulating material to seal around the heating board.
7. The electric control adopts program control and digital display parameters.



Cylineder-above hydraulic oil press machine for making resin polishing products:

Model MY-100 MY-160 MY-200 MY-315 MY-400 MY-500
Nominal pressure(KN) 1000 1600 2000 3150 4000 5000
Rated oil pressure(MPa) 26 26 25 28 29 28
Maxiumum stroke(mm) 220 250 210 250 350 300
Diameter of the piston(mm) Φ220 Φ280 Φ320 Φ380 Φ420 Φ480
Speed of idle stroke(mm/s) ≥17 ≥17 ≥13  15-35   12-25   12-25
Worktable size(mm) 400×400 600×600 600×600 730×660 730×660 can be customized
Motor power(kw) 2.2 ≤5.5 ≤5.5 ≤7.5 ≤11 ≤11
Mainframe weight(kg) 1200 2100 2900 5200 7300 9000

Other specifications can be customized according to buyer's requirements.

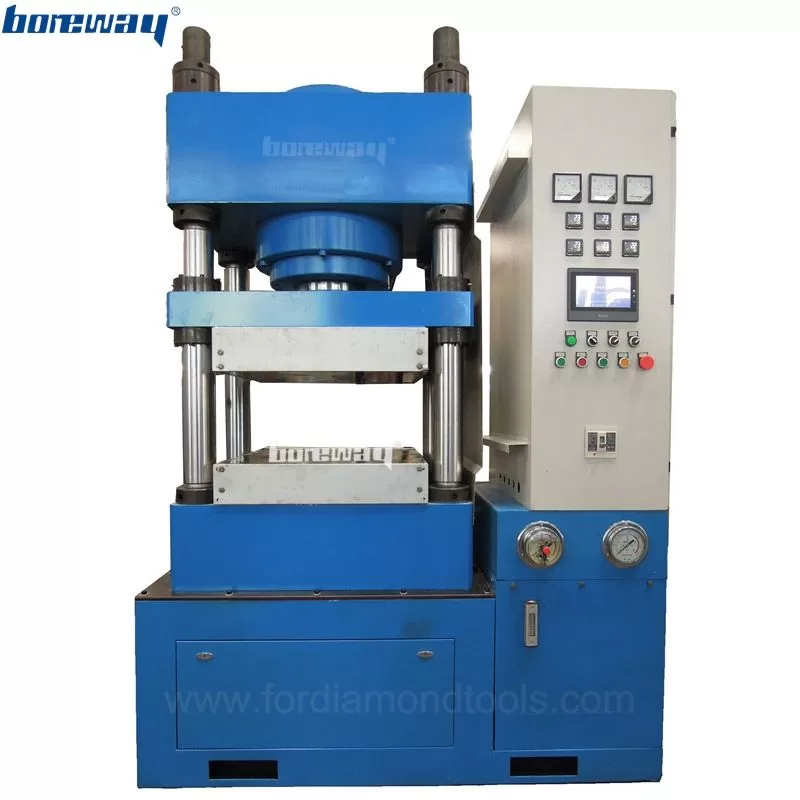

Cylineder-above hydraulic oil press machine for making resin polishing products

Cylineder-above hydraulic oil press machine for making resin polishing products

Notice:
1. Please provide the processed material before purchase.
2. Before purchase, please provide the model of the machine.


Cylinerder-above oil Press machine packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.

hydraulic oil press machine for making resin products
