Product Specification:
  • Model :
    BWA60-3P, BWA80-P
  • Power(W) :
    120
  • Air Pressure(MPA) :
    0.8, 0.6
  • Water consumption(m³/h) :
    1.5
  • Hydraulic Pressure(MPA) :
    ≥0.2
  • Brazing Capacity(pc/h) :
    300-700, 200-600
  • Brazing Diameter :
    Ø200-Ø800, Ø300-
See Price
  1. Product Details

Semi-Automatic Diamond Saw Blade Welding Rack, Brazing frame machine BWA60-3P, BWA80-PThis kind of welding frame machine is High-Precision type,which especially for small diamond saw blade welding as ceramic cutting saw blade or jewel cutting saw blade.Manually sent segment,manually put silver solder,manually put soldering flux,and Human-assisted segment separating.other welding steps will be finished automatically.

CONFIGURATION:
1. Ceramic clip protection function.
2. Human-assisted segment separating system (special version for the small saw blade).
3. Segment automatic fixing system.Machine can automatic fix the segment to the welding position.
4. Segment manually centering system.Manually adjust the welding position of the segment before the welding.

Semi-Automatic Diamond Saw Blade Welding Rack Brazing frame machine:

Model

BWA60-3P

BWA80-P

Brazing Diameter (mm)

Ø200-Ø800

Ø300-Ø900

Welding error (Verticality)(mm)

≤±0.02

≤±0.03

Welding error (Linearize)(mm)

≤±0.02

≤±0.03

Brazing Capacity (pc/h)

300-700

200-600

Air Pressure(MPA)

0.8

0.6

Hydraulic Pressure(MPA)

≥0.2

≥0.2

Power(W)

120

120

Water consumption(m³/h)

1.5

1.5

Weight(Kg)

115

120

Dimension(mm)

900*750*1600

900*750*1600

Note:This Machine No include induction heater,air compressor and water pump.

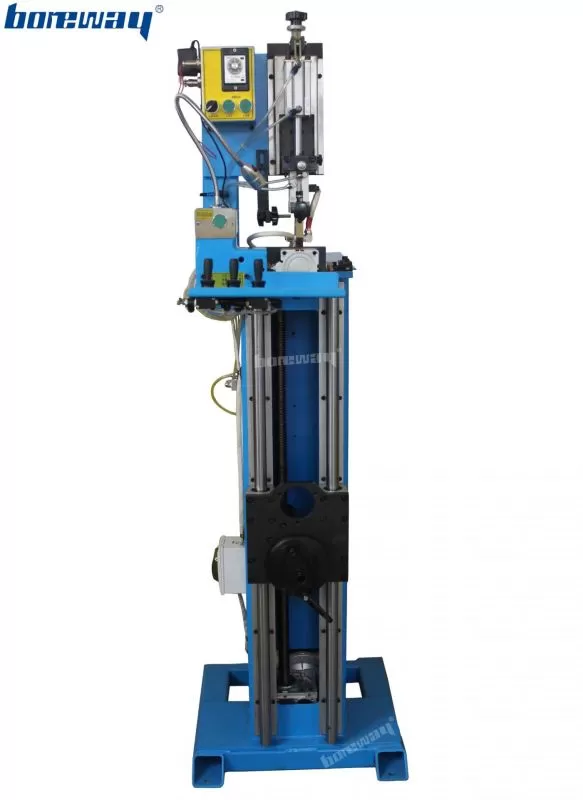

Semi-Automatic Diamond Saw Blade Welding Rack Brazing frame machine BWA60-3P

Semi-Automatic Diamond Saw Blade Welding Rack Brazing frame machine BWA60-3P

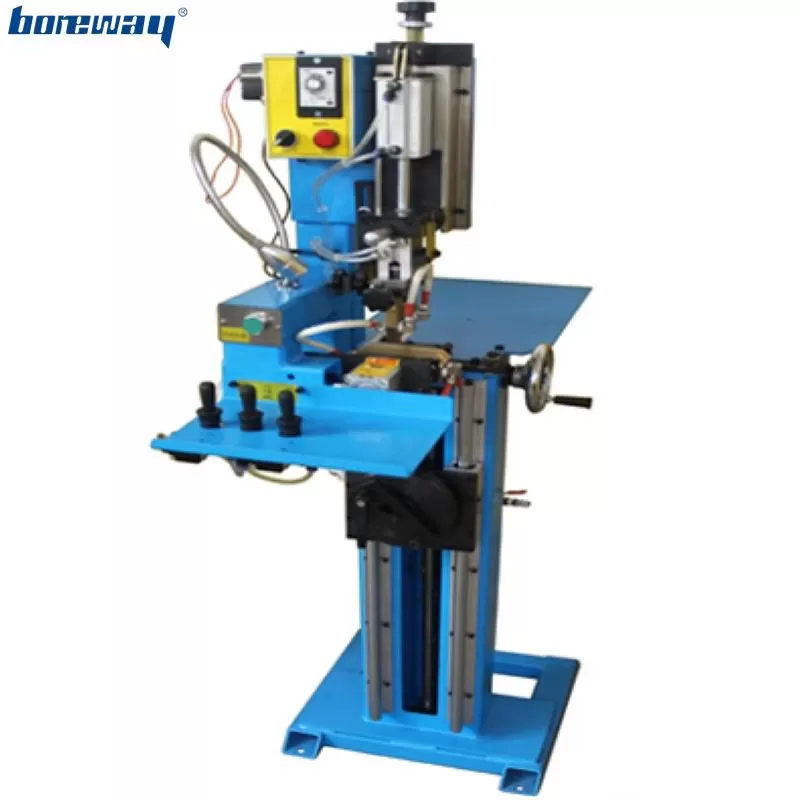

Semi-Automatic Diamond Saw Blade Welding Rack Brazing frame machine BWA80-P

Semi-Automatic Diamond Saw Blade Welding Rack Brazing frame machine BWA80-P


Related Products as below:

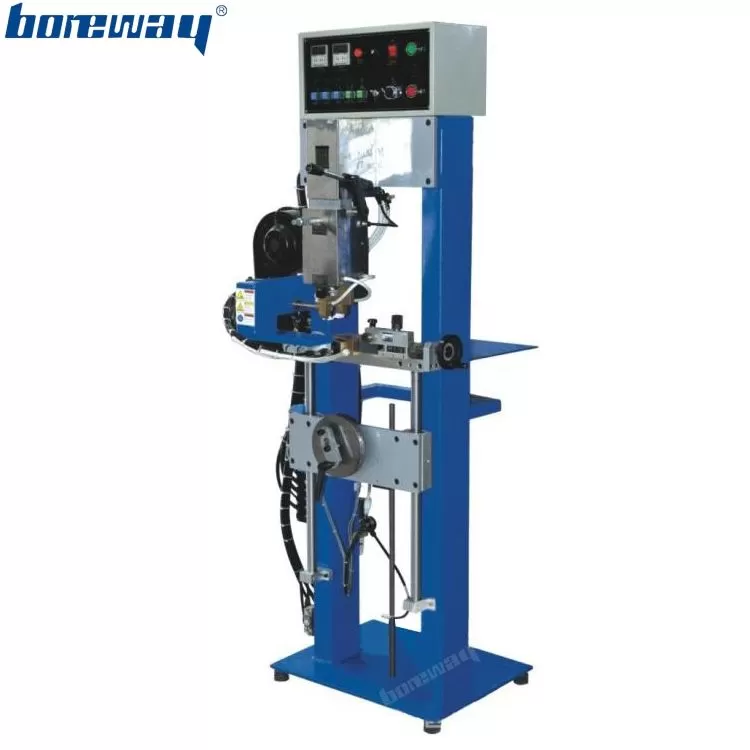

Model: BWM-HJ08, Pls click here:  Semi Automatic Brazing Frame Rack Dia.250-1400mm

               Diamond Saw Blade Welding Rack Semi Automatic brazing machine Dia.250-1400mm

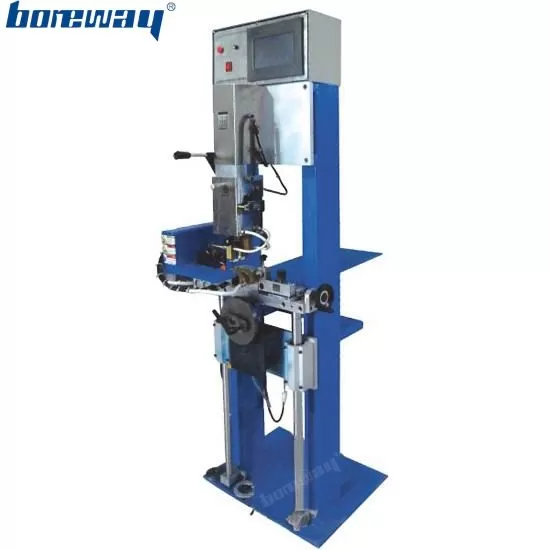

Model: BWM-HJ165, Pls click here: Semi Automatic Welding Frame Rack Dia. 250-2300mm

                                     Semi Automatic Welding Frame Rack for making Diamond Saw Blade Dia. 250-2300mm

Model: BWM-HJ350, Pls click here: Semi Automatic Brazing Machine Welding Rack Dia.350-3500mm

                     Brazing Machine Welding Rack for Making Diamond Saw Blades Dia.350-3500mm




Semi Automatic Diamond Saw Blade Welding Rack packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
