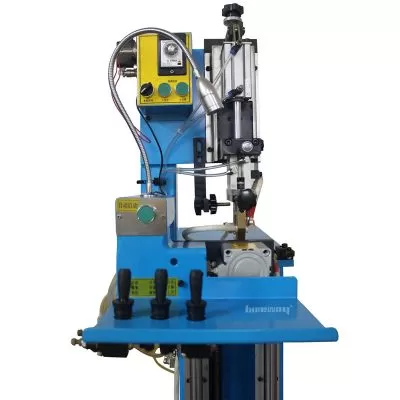

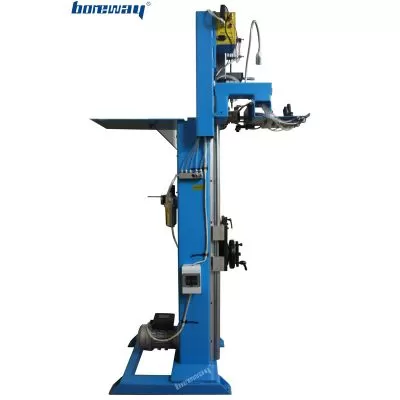

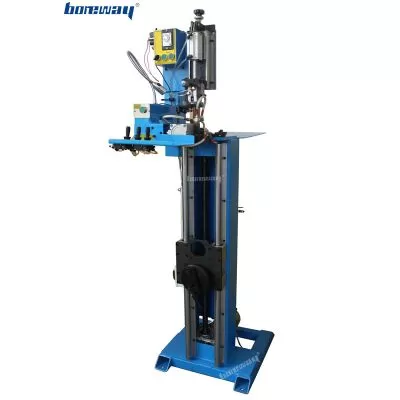

Welding Rack For Diamond Saw Blade Diameter 250_2300mm
Welding Rack For Diamond Saw Blade Diameter 250_2300mm
Welding Rack For Diamond Saw Blade Diameter 250_2300mm
Welding Rack For Diamond Saw Blade Diameter 250_2300mm
Welding Rack For Diamond Saw Blade Diameter 250_2300mm

Welding Rack For Diamond Saw Blade Diameter 250_2300mm

Product Specification:
  • Model :
    BWM-HJ165
  • Current :
    0.01A
  • Rated Capacity :
    370W
  • Machine Weight :
    160kg
  • Voltage :
    220 (Single-phase), 50HZ
  • Power (From LED Lighting) :
    1.0W
  • Water Consumption :
    1.5-2.0 cubic meter per hour
See Price
  1. Product Details

The "BWM-HJ165" Semi-Automatic Welding Rack is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.

Diamond Saw Blade Welding Rack has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.

Features:

1. Welding diameter range can be adjusted.
2. Welding frame structure is compact and reliable.

3. High efficiency and accuracy,low energy consumption.
4. High level of automation, good stability, long service life.

5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.


Welding Rack for Diamond Saw Blade Diameter 250-2300mm:

Model No:   BWM-HJ165
Welding Range Φ240mm - 2300mm(standard Φ1300mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 370W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L1030*W550*H1840mm
Equipment Weight 160Kg
Package Dimensions L2000*W680*H700(Horizontally)
Package Weight(Wooden Package) 200Kg

Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

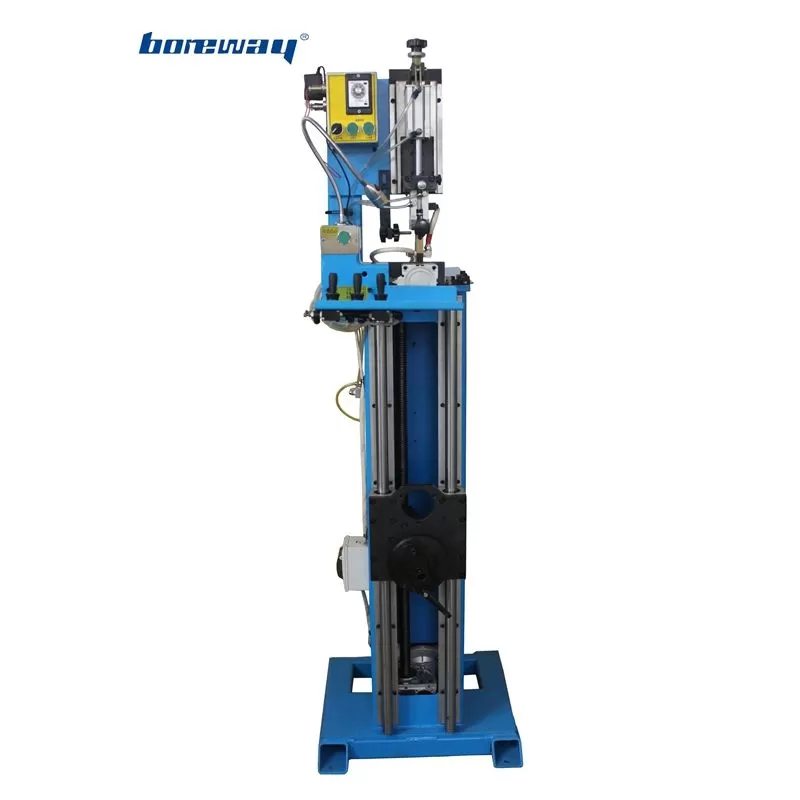

Welding Rack for Diamond Saw Blade Diameter 250-2300mm

Welding Rack for Diamond Saw Blade Diameter250-2300mm

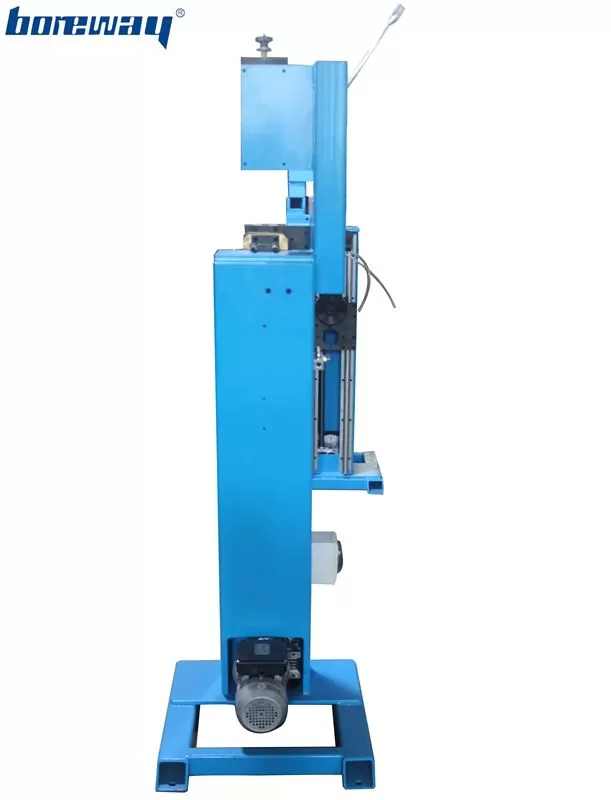

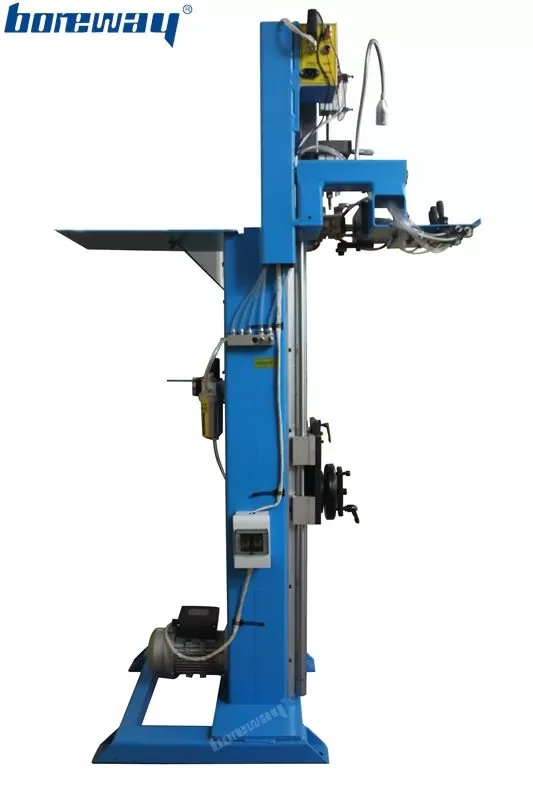

           Welding Rack for Diamond Saw Blade Diameter250-2300mm (01)Welding Rack for Diamond Saw Blade Diameter250-2300mm (02)

Welding Rack for Diamond Saw Blade Diameter 250-2300mm

The Details:

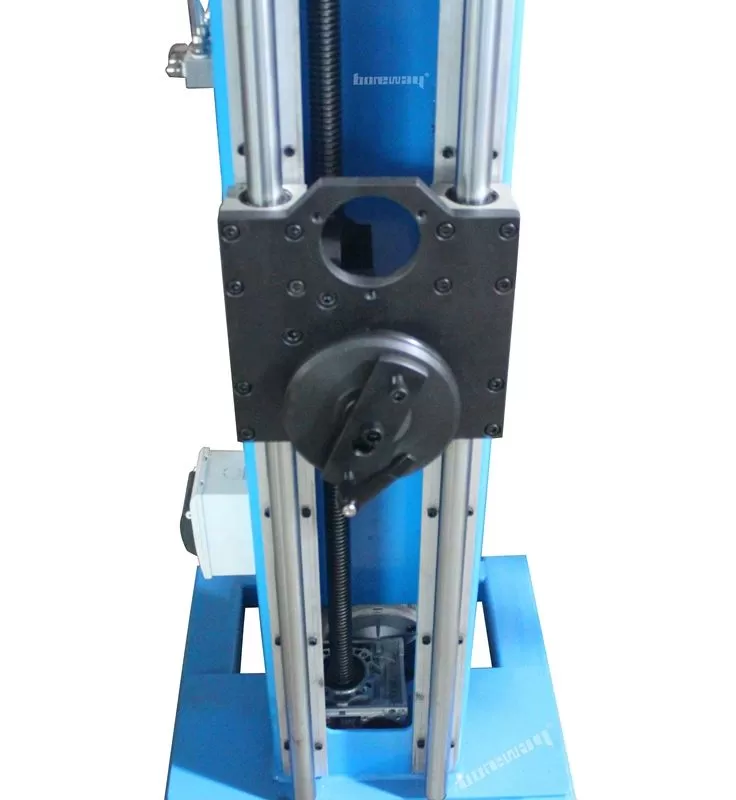

Welding Rack for Diamond Saw Blade Diameter250-2300mm (03)

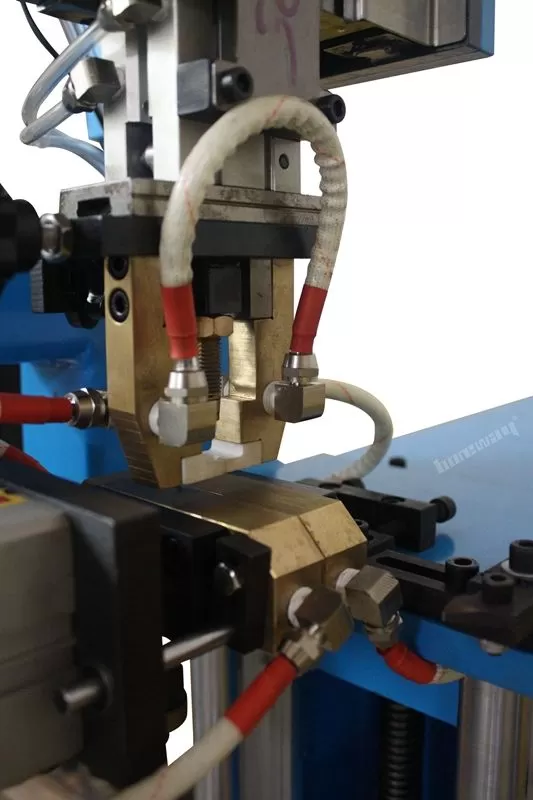

                         Welding Rack for Diamond Saw Blade Diameter250-2300mm (04)

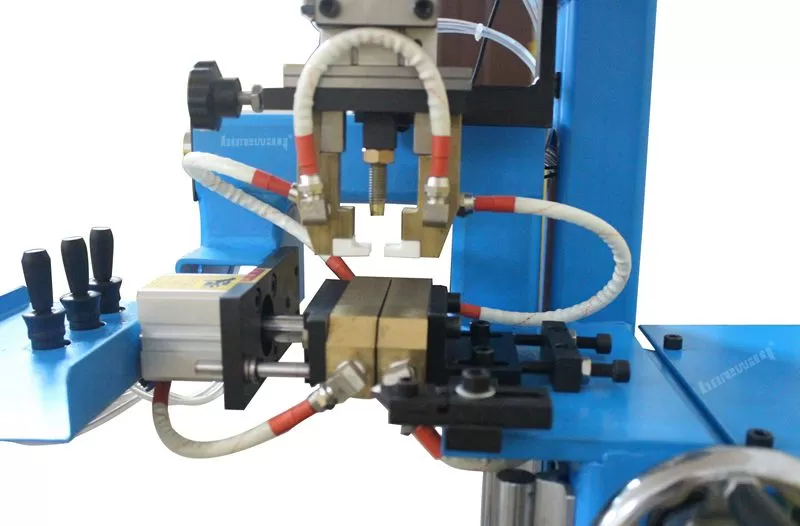

Welding Rack for Diamond Saw Blade Diameter250-2300mm (05)



Diamond Saw Blade Welding Rack Accessories-Tool Box : 

Welding Frame Rack Accessories-Tool Box : 


Welding Rack For Diamond Saw Blade​ packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
