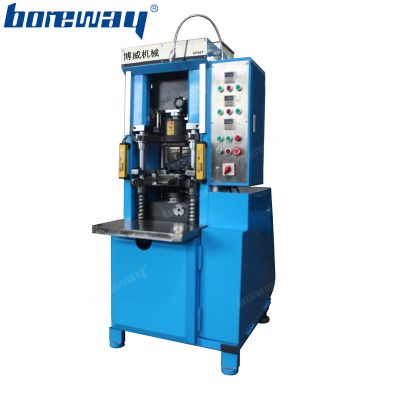

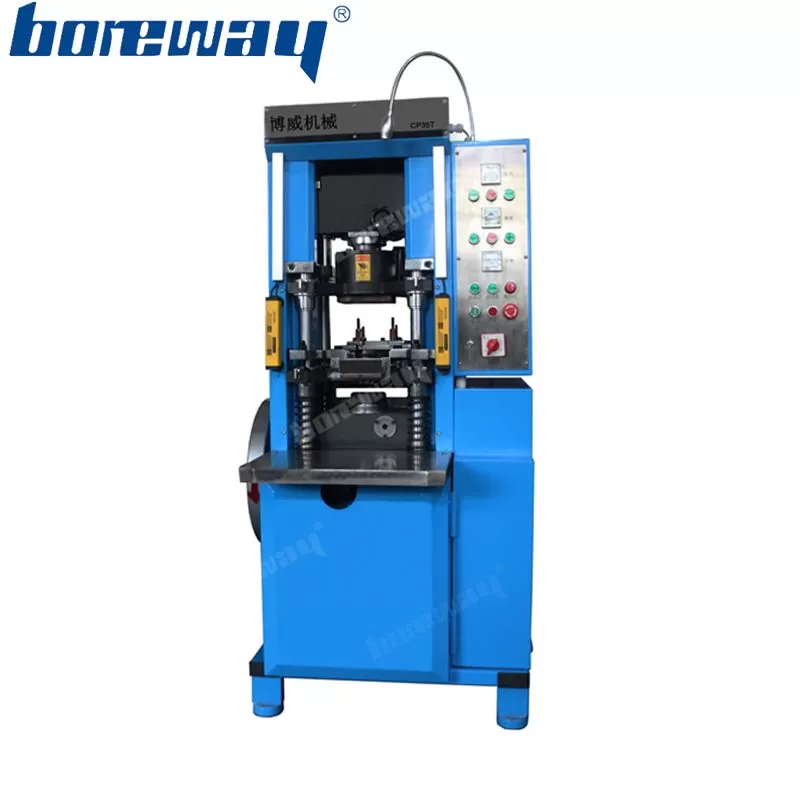

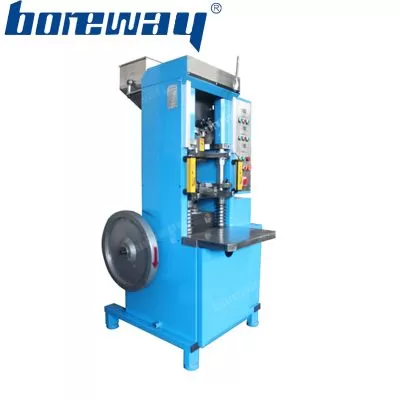

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T
Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T
Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T
Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T
Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Product Specification:
  • Model :
    BWM-MP35T
  • Motor Power :
    2.2KW
  • The rated current :
    6A
  • The rated voltage :
    380V
  • Distance of upward :
    64MM
  • Work efficiency :
    34Times / Min
  • Maximum working pressure :
    35000KGS
See Price
  1. Product Details


Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine is divided into two different models according to the different pressure (BWM-MP35T and BWM-MP60T).  On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc.

Features:

1. Small and delicate LED work light;

2. The screen is working together with the brake, greatly increasing safety factor for operator;

3. It also can be used for pressing the segment with a base layer of metal powder (welding layer).

4. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;

7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply.


Advantage:
Our Fully Automatic Diamond Segment Cold Press Machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland,
Russia, more than 20 different countries . In these overseas markets, our  products enjoy a good reputation,  we get good feedbacks about their corresponding test result, and also a long lifespan.
So, we are confident in our products quality. welcome to contact with us, if you have demands on our machine.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.


Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine

Model: BWM-MP35T

 Maximum working pressure  35000KGS
 Maximum size of mould cavity  40*70MM
 Size of the mould  L (220-250) * W 130 * H (20-30)CM
 The largest volume of hopper box  30KGS
 Maximum height of metal powder  0.5-20MM
 Weight accuracy of metal piece  ±2%
 Quantity of metal piece per time  1- 4PC
 Motor Power  2.2KW
 The rated voltage  380V
 The rated current  6A
 Work efficiency  34Times / Min
 Size of the mould  L (220-250) * W 130 * H (20-30)CM
 Device dimension  L810 * W1000 * H1600(Face angle)
 Net Weight  760KGS
Other specifications can be customized according to buyer's requirements.


Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

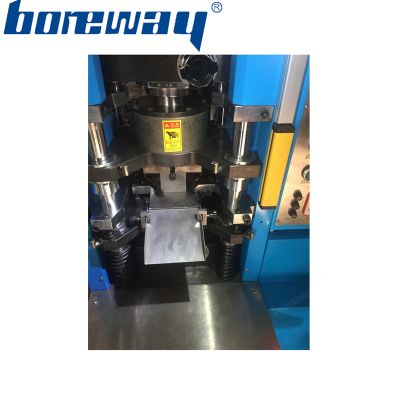

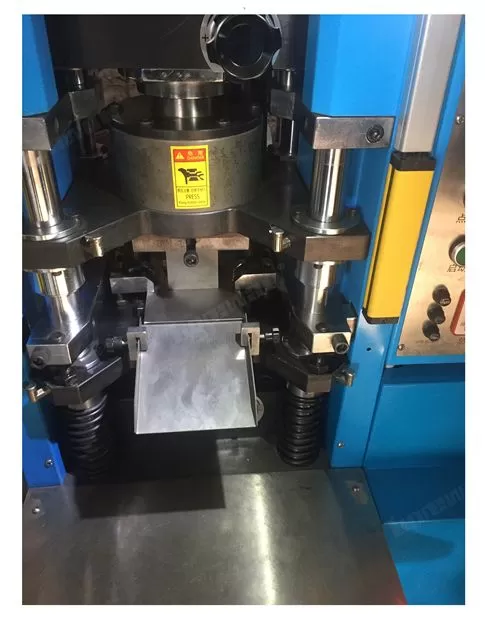

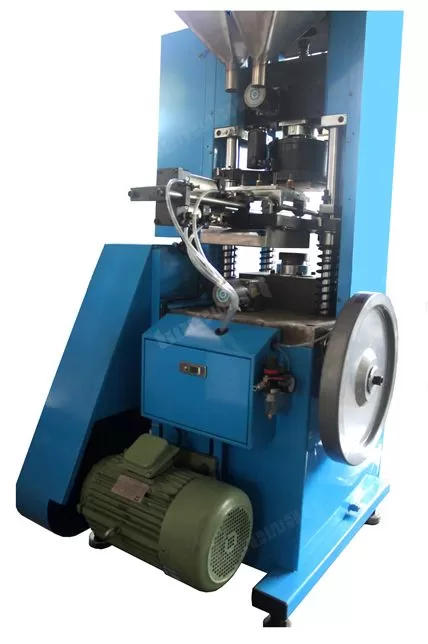

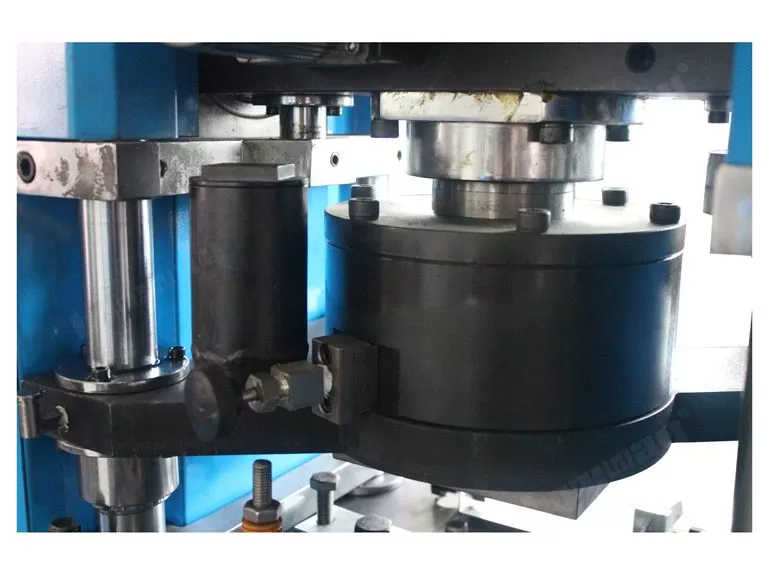

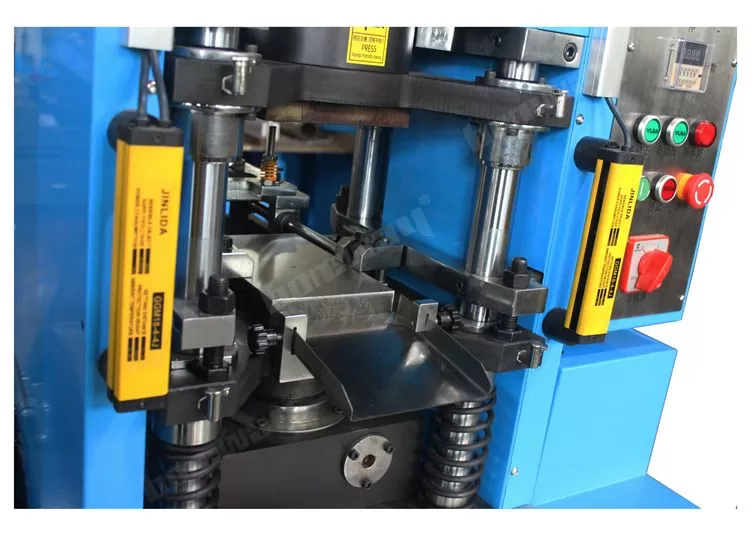

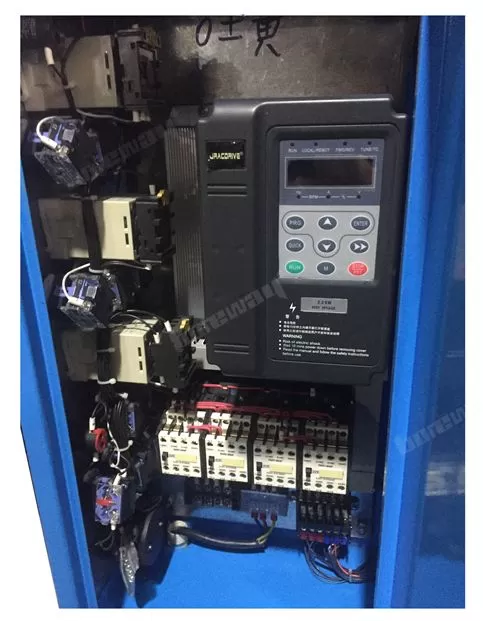

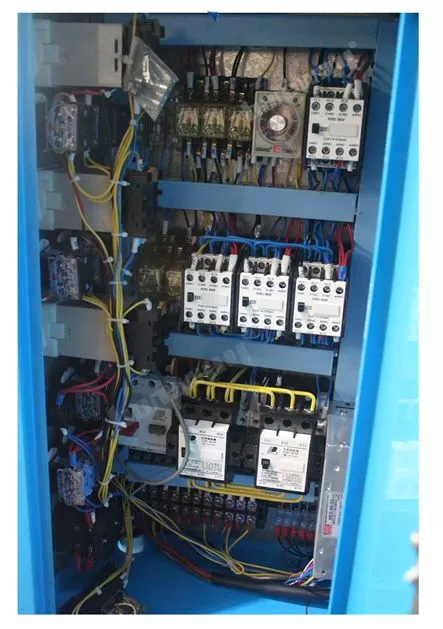

The Details:

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35TDiamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35TDiamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

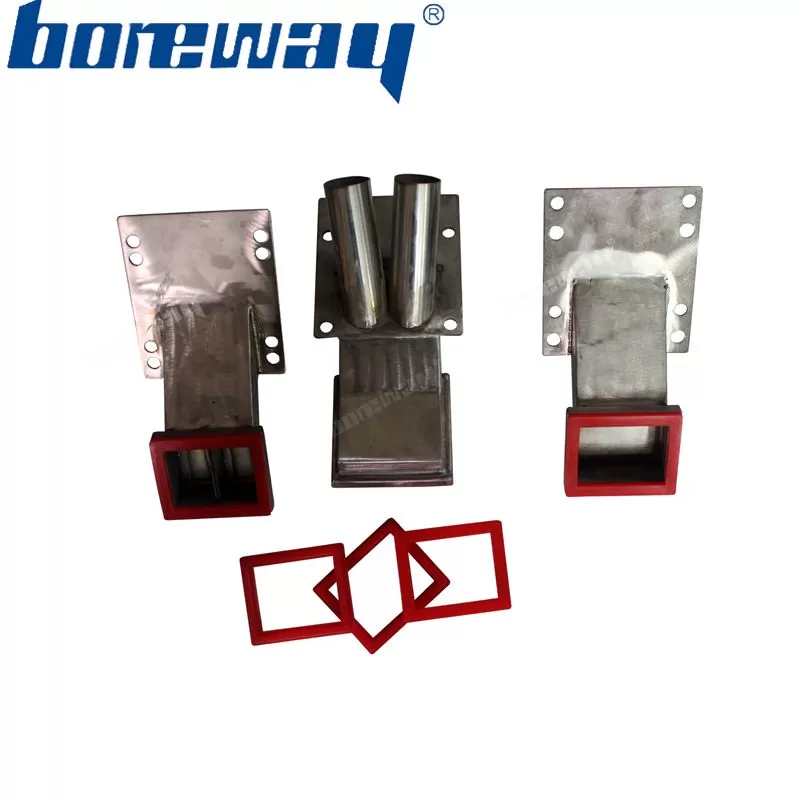

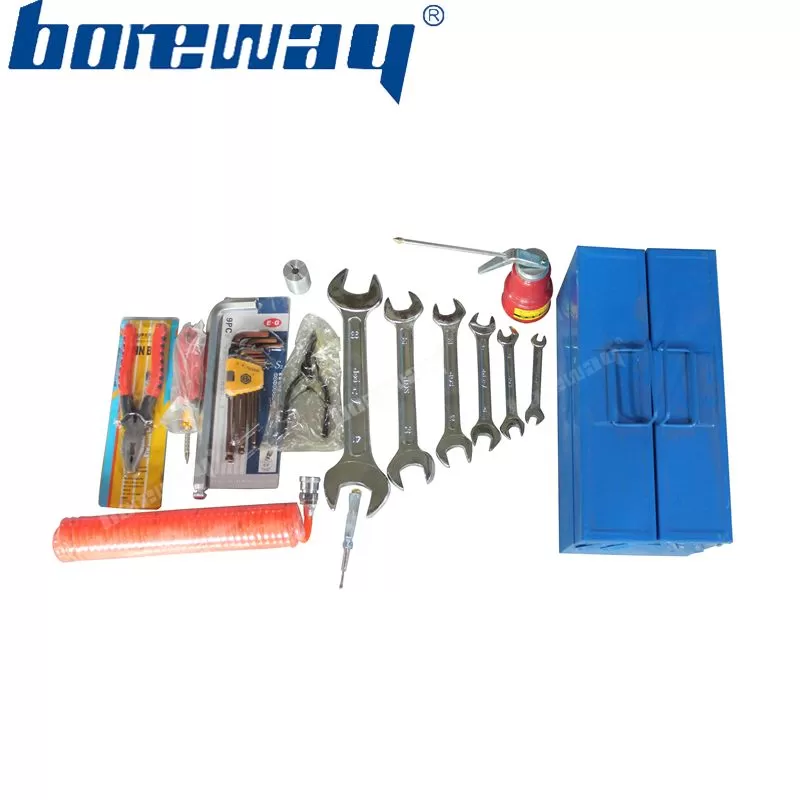

Diamond Segment Cold Press Machine Accessories and Tool Box included as below:

Diamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35TDiamond Segment Cold Press Machine Fully Automatic Powder Press Machine 35T

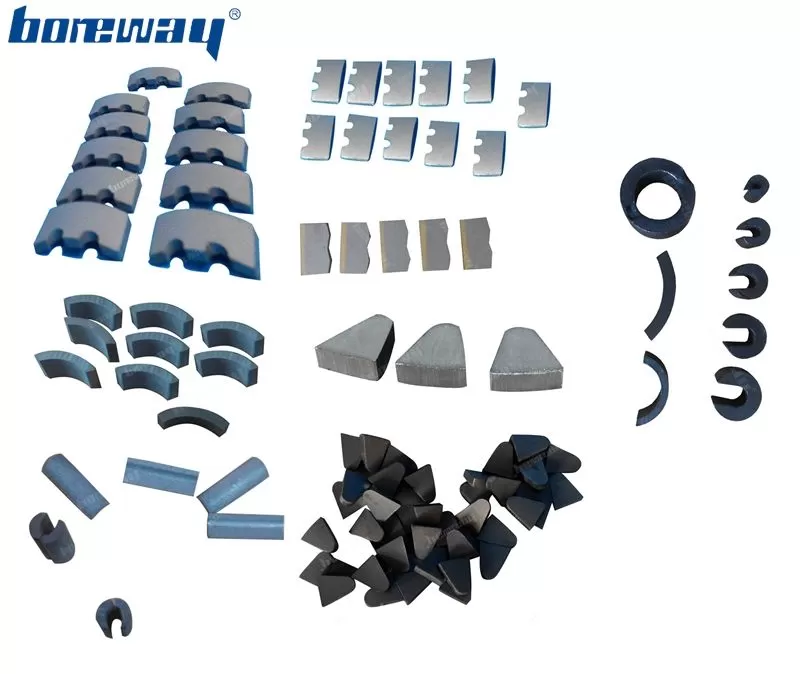

This cold press machine can make the following diamond segments,also can make other kinds.

More Pics in details, Pls contact with us.

diamond segments cold press machine

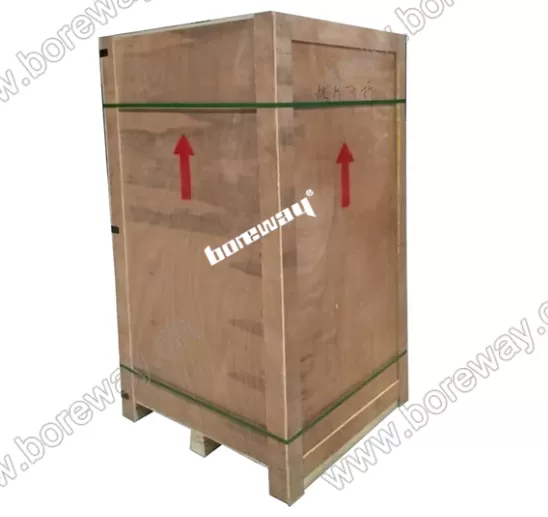

We will delivery within seven days of your payment,products are packed in wooden.
We can also pack the diamond segment cold press machine according to your requirements.
Special specifications need to be negotiated for delivery times.
