Diamond Segments Automatic Radius Grinding Machine

Product Specification:

Equipment Size :

L1000*W1000*H1720mm
Power supply :

380/220V,3-phase, 50/60 Hz
Maximum power consumption :

2KW
Belt rotation speed :

700 - 1750 rpm
Stroke of polishing part :

150mm
Processing range :

4"-16"

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

Auto Radius Grinding Machine use grinding belt to grind segment automatic loading diamond segment, quantity can be setted.

Position of Vertical Moving Grinding Wheel.

Diamond Segments Automatic Radius Grinding Machine, The equipment uses abrasive belt to automatically and accurately grind the arc welding part of laser welding segments. There is an automatic segments feeding device, which can adjust the moving speed and set the number of work by itself. The machining process is composed of the linear movement of the segment holder and the operation of the abrasive belt. The grinding of different radians can be realized by replacing the mould.

Specification of Diamond Segments Automatic Radius Grinding Machine：

Power supply:	380/220V, 3-phase, 50/60 Hz	Belt rotation speed:	700 - 1,750 rpm
Maximum power consumption:	2KW	Stroke of polishing part:	150 mm
Compressed air pressure:	4-6bar	Productivity (4"-16"):	25pcs/min
Processing range:	4 "-16"	Weight:	about 650 KG
Equipment Size:	Long:1000 Width:1000 High:1720mm	Production:	1000 units per hour
Grindable Size:	50mm long (maximum) x thick 4mm (maximum) x wide 10mm

Other specifications can be customized according to buyer's requirements.

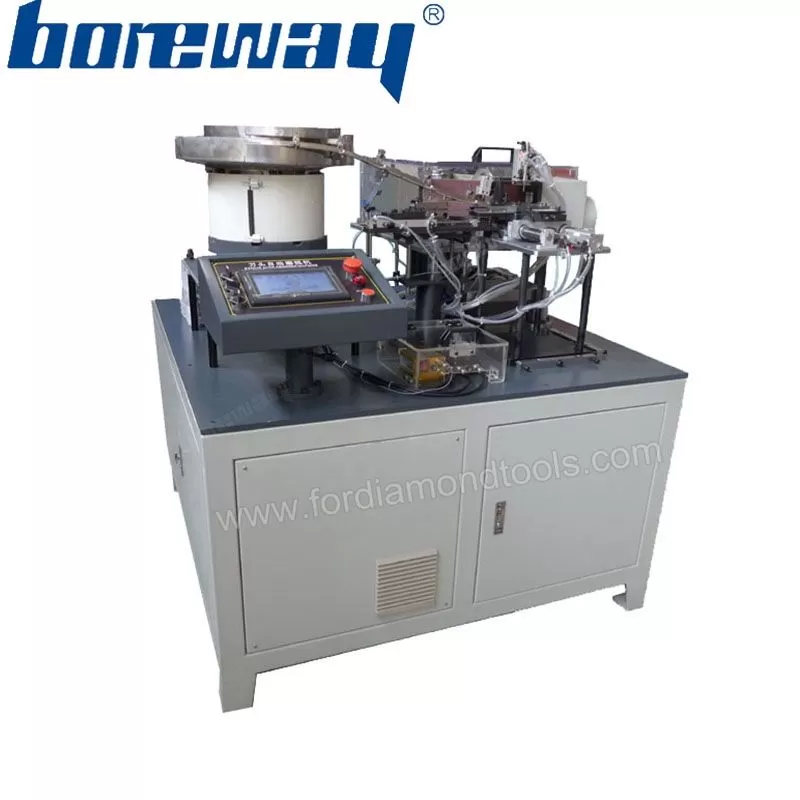

Diamond Segments Automatic Radius Grinding Machine

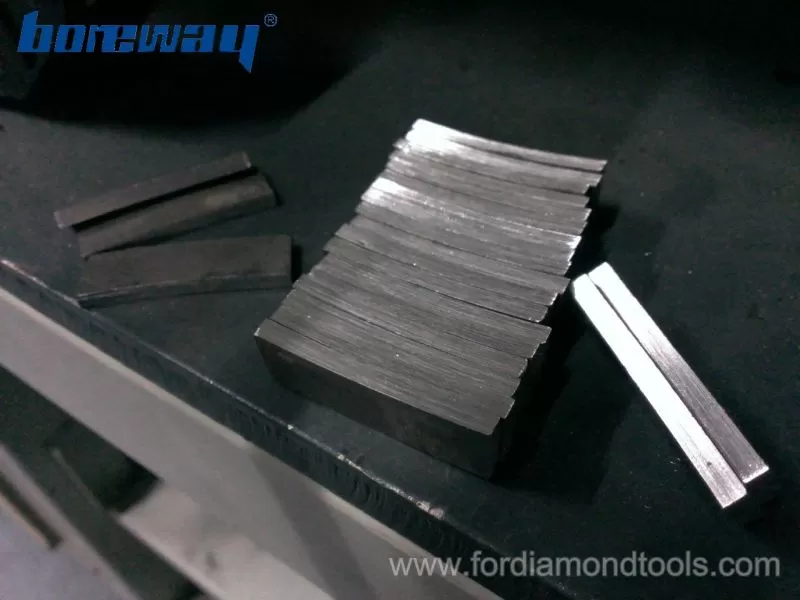

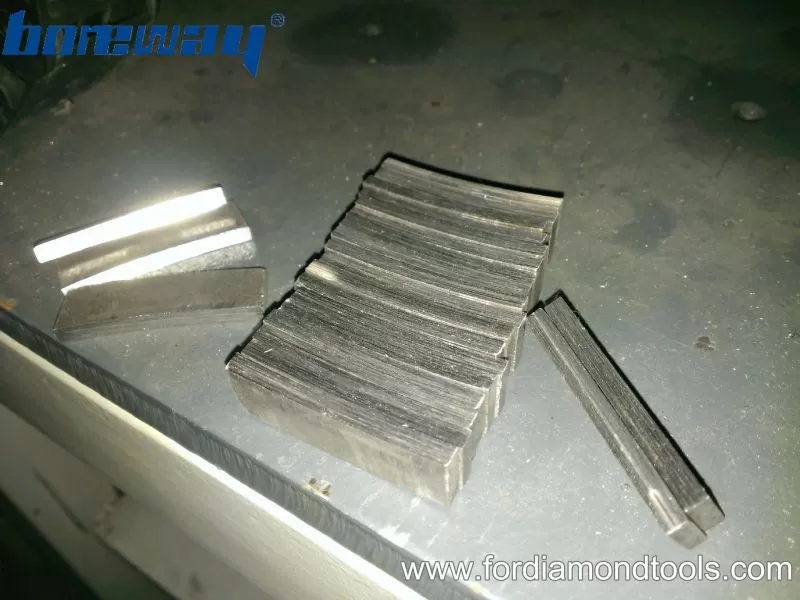

Grinding finished products:

Diamond Segments Automatic Radius Grinding Machine 01

Diamond Segments Automatic Radius Grinding Machine 02

Diamond Segment Radius Grinding Machine packing in the wooden.

We can also pack the grinding machine according to buyer's requirements.
Special specifications need to be negotiated with us before the delivery date.
