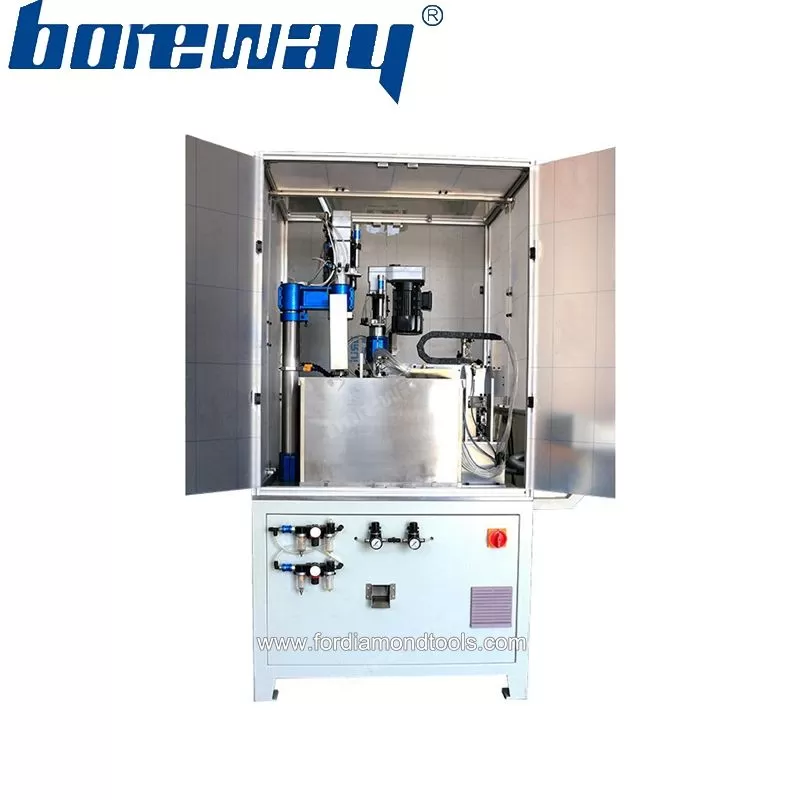

Diamond Wire Saw Beads Drilling Tapping Machine BWM_ART7_12

Product Specification:

Model :

BWM-ART7-12
Power :

2KVA
Efficiency :

500PCS/H
Weight :

About700Kg
Air Compressed :

6-8bar
Processing Specification :

7-12
Electric :

AC380V three-phase 50Hz

See Price

May you like

Diamond Wire Beads Counting Machine BWM_ZDJS450

Diamond Beads Counting Machine,counting machine for diamond beads is suitable for counting outer diameter 7.2-11.7. Using for counting beads,have two work modes:following set value to count or counting totality. contact email: boreway05@boreway.net

Drilling Tapping Machine for diamond wire saw beads,diamond wire saw beads drilling tapping machine Drilling and tapping of product at the same time, reduce risk of misalignment, taps can use longer time.

Drilling Tapping Machine for diamond wire saw beads BWM_ART7_12

Beaded Automatic Sharpening Machine for grinding single wire saw beads,Auto wire beads sharpening machine is designed to expose diamond of sintered wire beads automatically with very high performance dual.

Product Details

Diamond wire saw beads drilling tapping machine BWM-ART7-12

Drilling and tapping of product at the same time, reduce risk of misalignment, taps can use longer time.

Remarks: This machine is used for enlarging and tapping of single bead string. It can reduce the problem of different centers in separate enlarging and tapping, and increase the life of tap.

System Performance:

Bead size: 7.3-11.6

Average efficiency: 8s per unit, 450Pcs/h

Cooling system: 250L/min 1"pipe joint (cutting fluid)

Taper consumption: 700 Pcs per unit (for reference)

Diamond wire saw beads drilling tapping machine BWM-ART7-12

Technical parameters

TYPE:	ART7-12	EFFICIENCY:	500PCS/H
POWER:	2KVA	PROCESSING SPEC.:	7-12
ELECTRIC:	AC380V three-phase 50Hz	MACHINE SIZE:	Length1400mm Width1000mm Height1700mm
AIR COMPRESSED:	6-8BAR	WEIGHT:	About700Kg

Other specifications can be customized according to buyer's requirements.

Diamond wire saw beads drilling tapping machine BWM-ART7-12

Diamond wire saw beads drilling tapping machine

Diamond wire saw beads drilling tapping machine 01

Wire Saw Beads Drilling Tapping Machine packing in the wooden.

We can also pack the polishing machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
