Hydraulic Cold Press Machine
Intelligent Hydraulic Press Machine For Making Diamond Segment BWM_HP40
Product Specification:
-
Model Number :BWM-HP40
-
Pressure control range :0-40V
-
Control system voltage :24V
-
Working current :11.5A
-
Oil tank volume :230L
-
Total power :5.5 kw
-
Voltage :380V
May you like
- Product Details

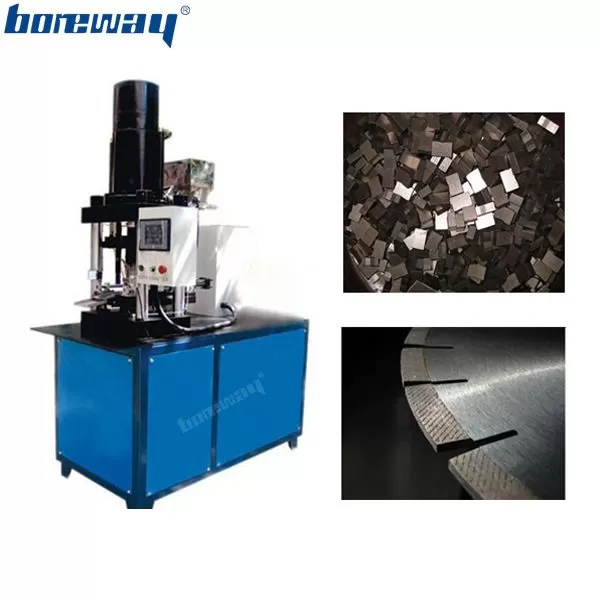

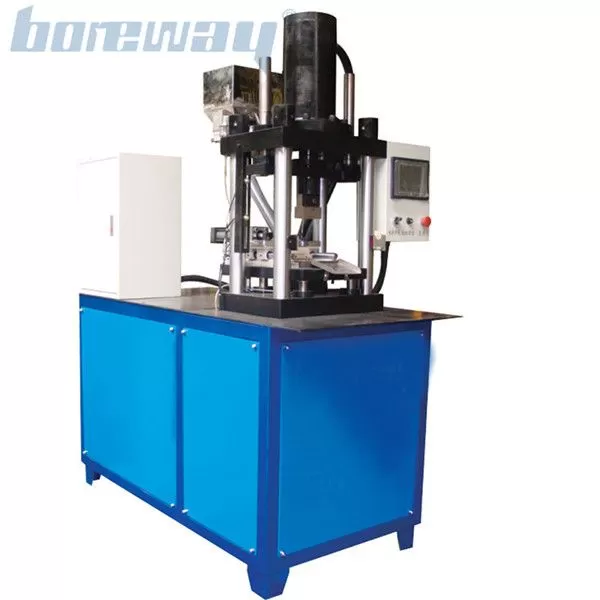

Intelligent Hydraulic Press Machine For Making Diamond Segment BWM-HP40
1. Working pressure is controlled by pressure switch
2. It uses positive displacement and designs automatic feeding
3. Hydraulic cold press machine can finish four pieces per stroke
4. High precision ,reliable performance ,stable compressure and never stucking mould
5. The operation system uses touch screen ,intuitive and understandable and easily operation
6. This machine specializes in pressing gang saw segment.(It can finish six pieces at the same time ,
of course different segment needs to be matched corresponding mould)
Advantage:
1.High precision
2.Reliable performance
3.Stable compressure and unstunk mould.
Moreover:
We have strong and professional techniques in our products.and we have satisfied after service.we treasure every client .and we keep a stable cooperation relationship with our clients.
We specially pay enough attention to every part of the products,therefore we ensure the quality about the blade we manufacture.We sincerely hope to make business with the clinets with good faith.
Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia.etc.more than 20 different countries.In these overseas markets,our blades enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.All of our our products have been strictly tested before access to market.
Intelligent hydraulic press machine for making diamond segmentThe followings are some denomination about this machine. Model Number: BWM-HP40
| Denomination: | |||
| Total power | 5.5 kw | ||
| Voltage | 380 V | ||
| Working current | 11.5 A | ||
| Control system voltage | 24 V | ||
| Pressure control range | 0 - 40 Ton | ||
| Oil tank volume | 230 L | ||
| Pressure range | Min weight 0.5g( Including diamond powder ) | ||
| Min weight 0.4g( Not including powder ) | |||
| Max weight 30g( Following with mould ) | |||
| Control system | Industry PLC and touch screen | ||
| Volume of machine | 760mm * 1600mm * 1930mm ( L*W*H ) | ||
| Weight | 1300kg | ||
| Error range | ±0.02g/Pcs | ||
| Production quantity | 900 times/h | ||
we can also manufacture products upon clients' needs.
Intelligent hydraulic press machine for making diamond segment BWM-HP40
Another model as below picture, Hydraulic cold press machine
Hydraulic Cold Press Machine Packing in the wooden case.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
