Ultra_high Pressure Oil Pump Group BWM_JB Series
Ultra_high Pressure Oil Pump Group BWM_JB Series

Ultra_high Pressure Oil Pump Group BWM_JB Series

Product Specification:
  • Model :
    BWM-JB Series
  • Runoff((L/min)) :
    0.5-11
  • Motor power(KW) :
    2.2-15
  • Capacity eddiciency(%) :
    ≥85
  • Rated pressure :
    60-120MPa
  • Output volume :
     0.2-15 L/min
  • Noise of oil pump(db) :
    ≤77/≤82
See Price
  1. Product Details

JB series of ultra-high pressure oil pump group is specially designed and developed for the synthetic press of super-hard materials by our institute. This type of press has won the patent of our country.

Ultra High Pressure Oil Pump Unit applicable to all kinds of super hard material synthetic presses, used for hydraulic system pressurization (supercharger replacement products, performance is better than supercharger) and micro-pressurization.
This series of presses can continuously work for a long time and it also has advantages of long lifespan and high work reliability as the ultra-high pressure oil source and micro-scale pressure compensate oil source. Ultra-high pressure oil pump group BWM-JB Series,Ultra High Pressure Oil Pump Unit
Rated pressure: 60-120MPa
Output volume: 0.2-15 L/min
Model JB120-05 JB110-2 JB120-7 JB70-11
Rated pressure(MPa) 120 110 120 70
Runoff((L/min)) 0.5 2 7 11
Capacity eddiciency(%) ≥85 ≥85 ≥85 ≥85
Motor power(KW) 2.2 4 15 15
Noise of oil pump(db) ≤77 ≤77 ≤82 ≤82
Overall dimension(mm) 600×420×495 1170×620×480  1250×560×600    1250×560×600
Weigt of combination pump(kg) 125 249 660 660

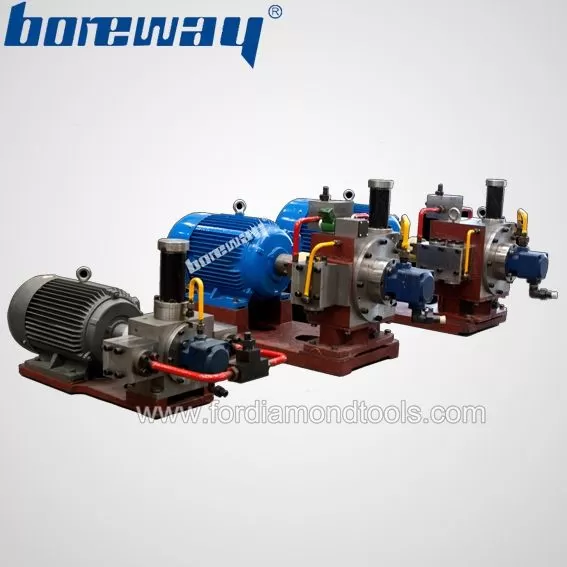

Ultra-high pressure oil pump group BWM-JB Series,
 Ultra High Pressure Oil Pump Unit

Ultra-high pressure oil pump group BWM-JB Series, Ultra High Pressure Oil Pump Unit


Ultra high pressure oil pump group packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
